OVA(B)-JCR 接管+接头连接型
发布:欧米茄不锈钢软管 | 发布时间:2020/10/29 15:40:45
Specialty 特长
There are three types of thread: external (mm), internal
(FF) and external internal (MF);
No net cover (type A), with net cover (type b);
It can be installed with connectors from various
manufacturers( VCR.UJR.MCR Etc.);
For users who need to grind polishing products (ry0.6 μ or
less), please write TP at the end of the type number.

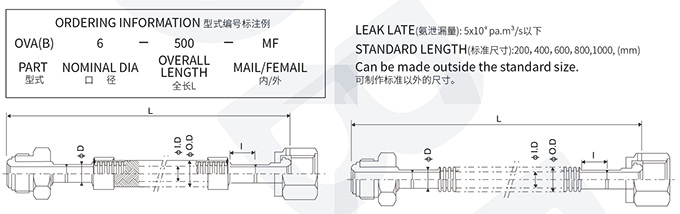

For example: VPA (b) 6-200-ff-vcrtp
•有两端外(MM)、内(FF)、外内(MF)3种类型螺纹;
•没有网套(A类型),有网套(B类型);
•可以安装各种厂家的接头,(VCR.UJR.MCR等);
•需要研磨抛光品°( Ry0.6 μ以下)的用户,请在型式编号的尾部写上TP。
例如:OVA(B)6-200-FF-VCRTP
LEAK LATE(氨泄漏量): 5x10-8 pa.m³/s以下
STANDARD LENGTH(标准尺寸):200,400,600,800,1000, (mm)
Can be made outside the standard size.
可制作标准以外的尺寸。
