Specialty 特长

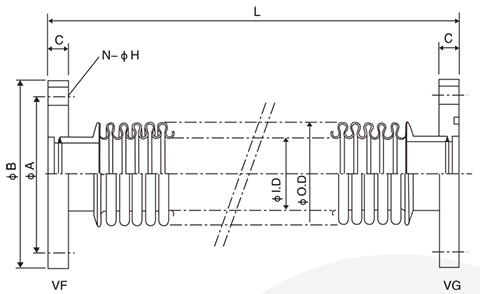

Standard products are fixed flanges at both ends;
Flange specification JISB2291 vacuum flange;
According to the requirement, one side flange can be
made into a rotatable form.

LEAK LATE(氨泄漏量): 5x10-8 pa.m³/s以下
OVERALL LENGTH(制作全长):MAX.3000mm
STANDARD LENGTH(标准尺寸):500,1000, (mm)
Can be made outside the standard size.
可制作标准以外的尺寸。

•标准品爲两端固定法兰；
•法兰规格JISB2291真空法兰；
•根据要求一侧法兰可制成可转动形式。
