OJA 接管型
发布:欧米茄不锈钢软管 | 发布时间:2020/10/29 15:35:17
Specialty 特长
Swageiok and other joints can be assembled;
No net cover (type A), with net cover (type b);
After the final process of vacuum heat treatment, the residual
gas is less;
For users who need to grind polishing products (ry 0.6 μ or
less), please write TP on the type number.

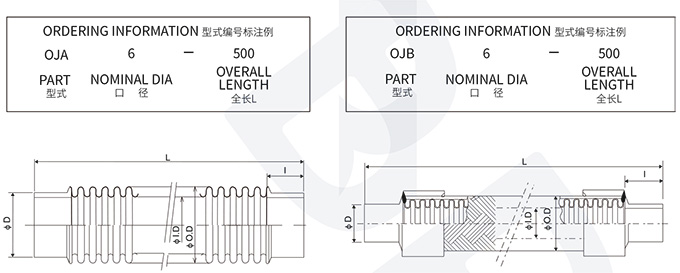

For example: OJA 6-200tp.
•可以装配SwageIok等接头;
•无网套(A类型),有网套(B类型)
• 经过最终工序的真空热处理,残留的气体少;
•需要研磨抛光品(Ry 0.6 μ以下)的用户,请在型式编号上写入TP。
例如:OJA 6-200TP。
LEAK LATE(氨泄漏量): 5x10-8 pa.m³/s以下
STANDARD LENGTH(标准尺寸):200,400,600,800,1000, (mm)
Can be made outside the standard size.
可制作标准以外的尺寸。
